Tax Documents
Tax5498Sa
FDX / Data Structures / Tax5498Sa
Form 5498-SA, HSA, Archer MSA, or Medicare Advantage (MA) MSA Information
Extends and inherits all fields from Tax
Tax5498Sa Properties

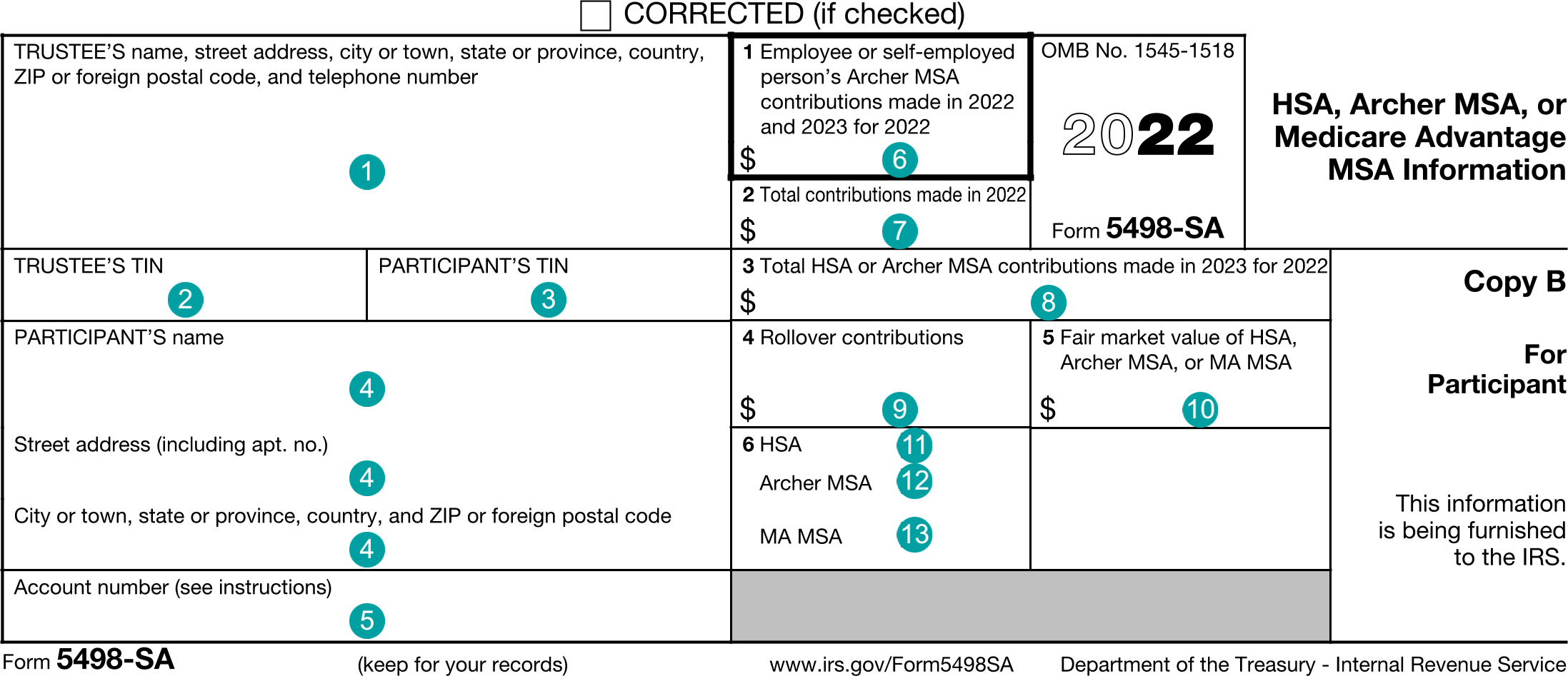

# | Id | Type | Description |
---|---|---|---|
1 | trusteeNameAddress | NameAddressPhone | Trustee's name, address, and phone |
2 | trusteeTin | string | TRUSTEE'S TIN |
3 | participantTin | string | PARTICIPANT'S TIN |
4 | participantNameAddress | NameAddress | Participant's name and address |
5 | accountNumber | string | Account number |
6 | msaContributions | number (double) | Box 1, Employee or self-employed person's Archer MSA contributions made in current and following years for current year |
7 | totalContributions | number (double) | Box 2, Total contributions made in current year |
8 | totalPostYearEnd | number (double) | Box 3, Total HSA or Archer MSA contributions made in following year for current year |
9 | rolloverContributions | number (double) | Box 4, Rollover contributions |
10 | fairMarketValue | number (double) | Box 5, Fair market value of HSA, Archer MSA, or Medicare Advantage (MA) MSA |
11 | hsa | boolean | Box 6a, HSA |
12 | archer | boolean | Box 6b, Archer MSA |
13 | maMsa | boolean | Box 6c, Medicare Advantage (MA) MSA |
Tax5498Sa Usage:
- TaxData tax5498Sa
FDX Data Structure as JSON
{ "tax5498Sa" : { "taxYear" : 0, "corrected" : true, "accountId" : "", "taxFormId" : "", "taxFormDate" : "2020-07-01", "description" : "string", "additionalInformation" : "string", "taxFormType" : "BusinessIncomeStatement", "attributes" : [ { "name" : "string", "value" : "string", "boxNumber" : "string", "code" : "string" } ], "error" : { "code" : "string", "message" : "string" }, "trusteeNameAddress" : { "line1" : "String64", "line2" : "String64", "line3" : "String64", "city" : "String64", "state" : "String64", "postalCode" : "string", "country" : "AD", "name1" : "String64", "name2" : "String64", "phone" : { "type" : "HOME", "country" : "string", "number" : "string", "extension" : "string" } }, "trusteeTin" : "string", "participantTin" : "string", "participantNameAddress" : { "line1" : "String64", "line2" : "String64", "line3" : "String64", "city" : "String64", "state" : "String64", "postalCode" : "string", "country" : "AD", "name1" : "String64", "name2" : "String64" }, "accountNumber" : "string", "msaContributions" : 0.0, "totalContributions" : 0.0, "totalPostYearEnd" : 0.0, "rolloverContributions" : 0.0, "fairMarketValue" : 0.0, "hsa" : true, "archer" : true, "maMsa" : true } }

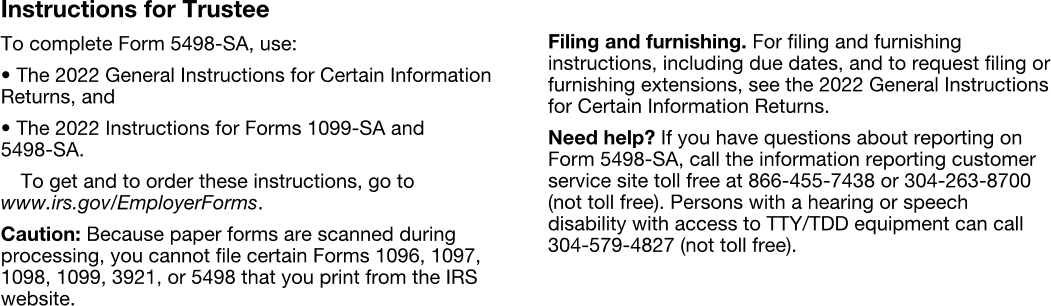

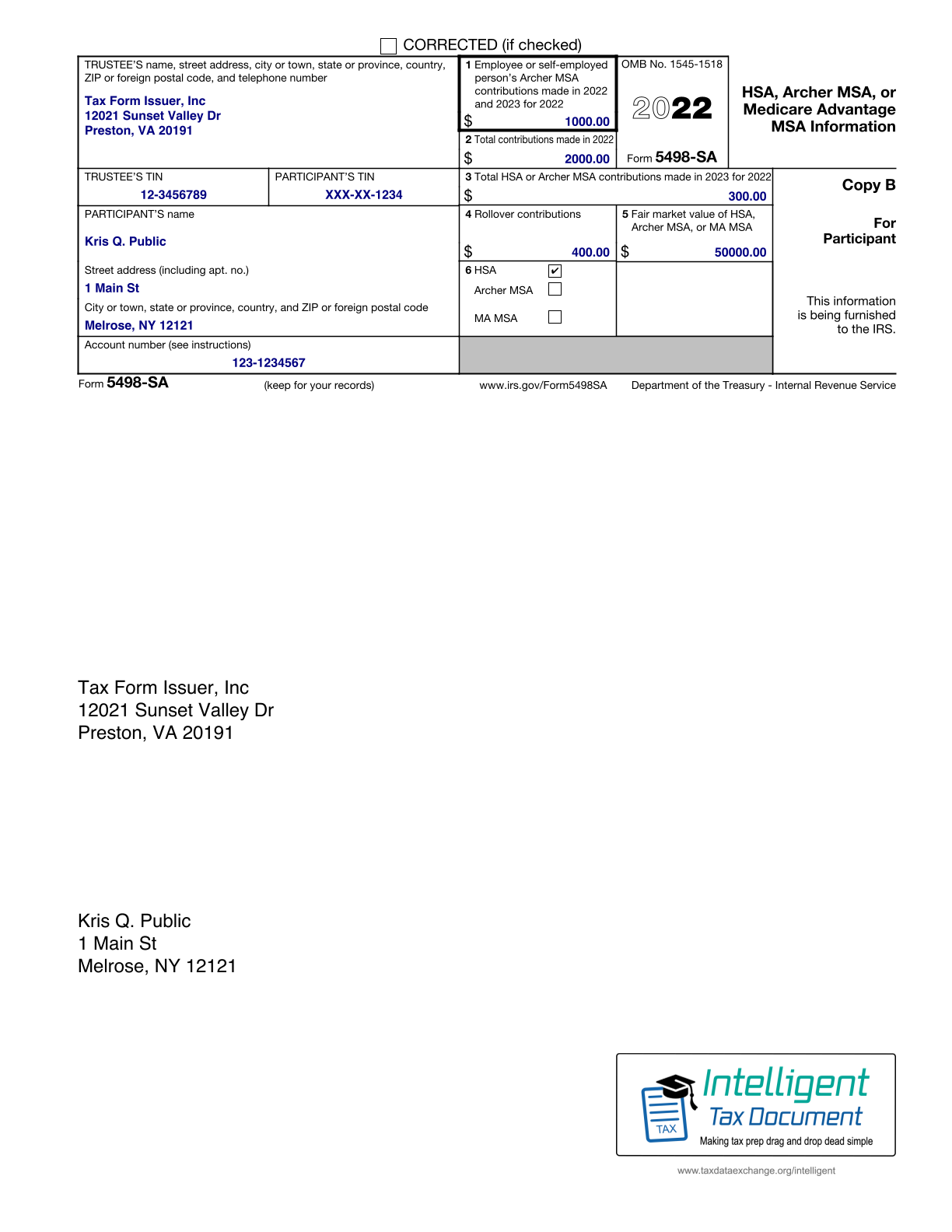

Example Form PDF
Example Form JSON
{ "tax5498Sa" : { "taxYear" : 2022, "taxFormDate" : "2021-03-30", "taxFormType" : "Tax5498Sa", "trusteeNameAddress" : { "line1" : "12021 Sunset Valley Dr", "city" : "Preston", "state" : "VA", "postalCode" : "20191", "name1" : "Tax Form Issuer, Inc" }, "trusteeTin" : "12-3456789", "participantTin" : "XXX-XX-1234", "participantNameAddress" : { "line1" : "1 Main St", "city" : "Melrose", "state" : "NY", "postalCode" : "12121", "name1" : "Kris Q. Public" }, "accountNumber" : "123-1234567", "msaContributions" : 1000.0, "totalContributions" : 2000.0, "totalPostYearEnd" : 300.0, "rolloverContributions" : 400.0, "fairMarketValue" : 50000.0, "hsa" : true } }
Example Form JSON for QR Code Purposes

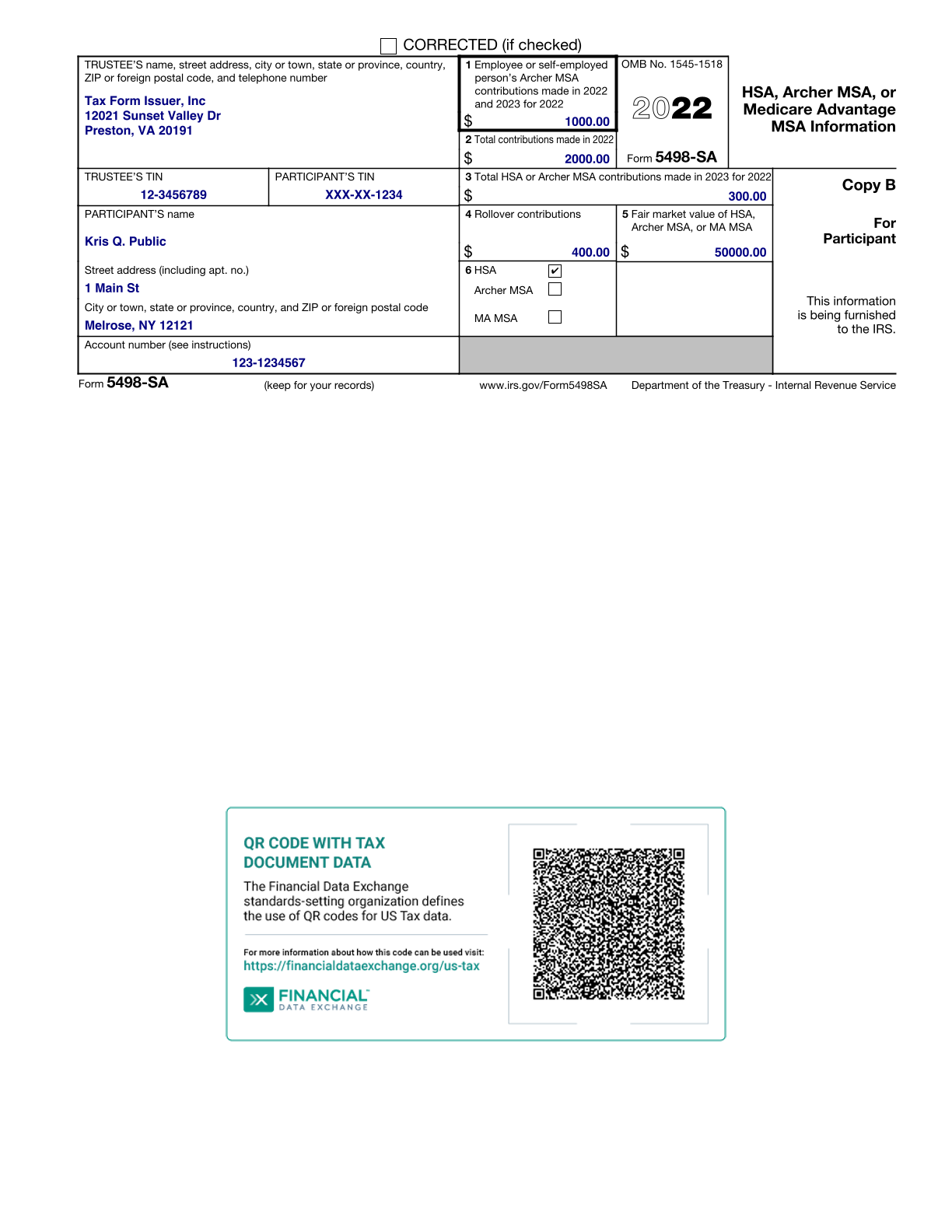

Example Form PDF with QR Code
Example Data As Flattened Map (Key, Value Pairs)
{ "taxYear": "2022", "taxFormDate": "2021-03-30", "taxFormType": "Tax5498Sa", "trusteeNameAddress.line1": "12021 Sunset Valley Dr", "trusteeNameAddress.city": "Preston", "trusteeNameAddress.state": "VA", "trusteeNameAddress.postalCode": "20191", "trusteeNameAddress.name1": "Tax Form Issuer, Inc", "trusteeTin": "12-3456789", "participantTin": "XXX-XX-1234", "participantNameAddress.line1": "1 Main St", "participantNameAddress.city": "Melrose", "participantNameAddress.state": "NY", "participantNameAddress.postalCode": "12121", "participantNameAddress.name1": "Kris Q. Public", "accountNumber": "123-1234567", "msaContributions": "1000.0", "totalContributions": "2000.0", "totalPostYearEnd": "300.0", "rolloverContributions": "400.0", "fairMarketValue": "50000.0", "hsa": "true" }
